Understanding the basic components of a valve: Taking a butterfly valve as an example
Valves are indispensable components in various industrial applications, used to control the flow of liquids and gases. Among various valve types, butterfly valves stand out due to their simple structure and efficient operation. This article will explore the five basic components of a valve, focusing on Flanged Butterfly Valves,wafer butterfly valves, Cast Iron Lug Butterfly Valves,lug-type butterfly valves, and Manual Butterfly Valves.
1. Main Text

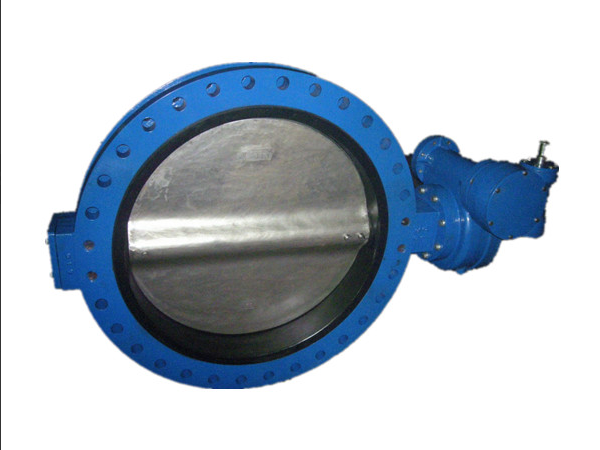

The valve body is the main structure of the valve, housing all other components. Taking butterfly valves as an example, there are several types of valve bodies, including flanged butterfly valves and wafer butterfly valves. Flanged butterfly valves have flanges that allow for easy installation between two pipe flanges, making them ideal for high-pressure applications. Wafer butterfly valves, on the other hand, can be installed between two pipe flanges without additional support, resulting in a more compact structure and lighter weight.
2. Disc
The valve disc of a butterfly valve is the main component controlling fluid flow. In a butterfly valve, the valve disc is a circular disk that rotates around a central axis. When the valve is open, the valve disc is parallel to the fluid direction, allowing fluid to pass through; when the valve is closed, the valve disc is perpendicular to the fluid direction, effectively blocking fluid flow. Cast iron lug-type butterfly valves feature a lug design, facilitating installation and disassembly, and are therefore widely popular in various applications. The lug design provides additional support and stability, especially in large piping systems.
3. Stem
The valve stem connects the valve disc to the actuator or handle, thereby operating the valve. In manual butterfly valves, the valve stem is typically operated by a handwheel or handle, allowing the user to open or close the valve as needed. Because the valve stem is in constant motion during operation, it must be durable and wear-resistant. In automated systems, the valve stem can be connected to an electric or pneumatic actuator, enabling remote control functionality.
4. Seating
The valve seat is the sealing surface that ensures a tight seal when the valve is closed. In butterfly valves, the seat is typically made of a resilient material, providing a reliable leak-proof seal. The quality of the seat material is crucial because it must be able to withstand the pressure and temperature of the controlled fluid. Different butterfly valve designs, such as lug-type butterfly valves, may employ different seat designs to suit specific applications and ensure optimal performance.
5. Actuator
An actuator is the mechanism that drives a valve, controlling the opening and closing of the valve disc. In manual butterfly valves, the actuator is typically a manually operated lever or knob. However, in more advanced systems, electric or pneumatic actuators can be used for automated control. The choice of actuator depends on specific application requirements, including whether remote operation is needed, the operating speed, and the type of fluid being controlled.
in conclusion
For those working in industrial applications, understanding the basic components of valves is crucial. Flanged butterfly valves, wafer butterfly valves, cast iron lug butterfly valves, lug butterfly valves, and manual butterfly valves all share the same basic components, but each has its unique advantages to meet different operational needs. By familiarizing yourself with these components, you can select the appropriate valve for your specific application, ensuring efficient and reliable fluid control.
